1060 Aluminum Sheet Manufacturer & Supplier
Hongyuan Aluminum is a China-based aluminum manufacturer supplying 1060 aluminum sheets for electrical, thermal, fabrication, and general industrial applications.
1060 aluminum is a commercially pure aluminum grade containing at least 99.6% aluminum. It is known for excellent formability, good corrosion resistance, and high thermal and electrical conductivity.
Compared with higher-strength aluminum alloys, 1060 aluminum has relatively low mechanical strength but offers excellent workability for applications where conductivity and forming performance are important.
We support customized dimensions, tempers, and processing requirements for international B2B customers.
1060 Aluminum Sheet Specifications
| Item | Specification |
|---|---|
| Product | 1060 Aluminum Sheet |
| Alloy | 1060 / AA1060 |
| Aluminum Content | ≥99.60% |
| Temper | O, H12, H14, H16, H18, H24 |
| Thickness | Customized according to requirements |
| Width | Customized according to requirements |
| Length | Customized according to requirements |
| Surface | Mill Finish |
| Processing | Cutting, bending, stamping, forming |
| Standard | ASTM B209/B209M, EN 485, EN 573 (as applicable) |
| Packaging | Protective paper or film, wooden pallets or cases |
| Material Certificate | According to agreed order requirements |
Exact dimensions, tolerances, available tempers, applicable standards, and minimum order quantities are subject to production confirmation.
1060 Aluminum Sheet Standards
1060 aluminum sheets can be supplied according to applicable material standards and agreed customer specifications.
Commonly referenced standards include:
- ASTM B209/B209M: Standard Specification for Aluminum and Aluminum-Alloy Sheet and Plate.
- EN 485, EN 573: Europe standard series covering general industrial wrought aluminum and aluminum-alloy plates, sheets, and strips.
The applicable standard determines the relevant requirements for chemical composition, dimensional tolerances, mechanical properties, and inspection.
Customers should specify the required standard, alloy designation, temper, and acceptance criteria before placing an order.
Material test certificates and inspection documents can be arranged according to the agreed order requirements.
1060 Aluminum Chemical Composition
Typical chemical composition limits of AA1060 aluminum, expressed as weight percentage:
| Element | Content (%) |
|---|---|
| Aluminum (Al) | ≥99.60 |
| Silicon (Si) | ≤0.25 |
| Iron (Fe) | ≤0.35 |
| Copper (Cu) | ≤0.05 |
| Manganese (Mn) | ≤0.03 |
| Magnesium (Mg) | ≤0.03 |
| Zinc (Zn) | ≤0.05 |
| Titanium (Ti) | ≤0.03 |
| Vanadium (V) | ≤0.05 |
| Other Elements | According to applicable material standard |
Chemical composition and acceptance criteria should follow the applicable alloy designation and agreed material standard.
Key Features of 1060 Aluminum Sheet
1. High Aluminum Purity
1060 aluminum contains at least 99.6% aluminum, making it suitable for applications requiring commercially pure aluminum.
2. High Electrical Conductivity
Its high electrical conductivity makes 1060 aluminum a suitable material for certain electrical components, conductive connections, and industrial equipment.
3. Excellent Thermal Conductivity
1060 aluminum transfers heat efficiently and can be used in heat-transfer and thermal-management components.
4. Excellent Formability
1060 aluminum sheet offers good workability for bending, stamping, and forming, particularly in soft tempers.
5. Good Corrosion Resistance
The natural oxide layer provides good corrosion resistance in many ordinary atmospheric environments.
1060 Aluminum Sheet Applications
1060 aluminum sheets are commonly considered for:
- Electrical conductive components and busbar-related fabrication
- Heat-transfer and thermal-management equipment
- Lighting reflectors and lighting components
- Sheet metal bending and stamping
- Industrial insulation cladding
- Chemical equipment components
- Signs, decorative panels, and general fabrication
Final material selection should consider operating conditions, mechanical requirements, and applicable industry standards.
Common Tempers of 1060 Aluminum Sheet
| Temper | Characteristics | Typical Applications |
|---|---|---|
| O | Annealed, soft, excellent formability | Deep forming and complex bending |
| H12 | Quarter-hard | Light fabrication and forming |
| H14 | Half-hard | General sheet metal fabrication |
| H16 | Three-quarter-hard | Components requiring increased rigidity |
| H18 | Full-hard | Relatively rigid formed or flat components |
| H24 | Strain-hardened and partially annealed, half-hard | General industrial fabrication |
Available tempers and mechanical properties should be confirmed according to the required thickness and material standard.
1060 Aluminum Sheet vs 1050 Aluminum Sheet
1050 and 1060 are both commercially pure aluminum grades with good formability and corrosion resistance.
| Property | 1050 Aluminum Sheet | 1060 Aluminum Sheet |
|---|---|---|
| Minimum Aluminum Content | 99.5% | 99.6% |
| Formability | Excellent | Excellent |
| Corrosion Resistance | Good | Good |
| Electrical Conductivity | High | High |
| Thermal Conductivity | High | High |
| Typical Selection | General fabrication and forming | Electrical, thermal, and forming applications |
The higher minimum aluminum purity of 1060 may be beneficial for some conductivity-focused applications, although actual performance also depends on temper, composition, and processing.
How to Choose the Right 1060 Aluminum Sheet
When requesting a quotation, please provide:
- Alloy and temper
- Thickness, width, and length
- Required dimensional tolerances
- Applicable material standard
- Surface finish
- Quantity
- Final application
- Delivery destination
Our team can review the specifications and recommend an appropriate supply arrangement.
Custom 1060 Aluminum Sheets
Hongyuan Aluminum supports customized 1060 aluminum sheet requirements for industrial manufacturing and international distribution.
Available options may include different thicknesses, widths, lengths, tempers, cutting requirements, and packaging arrangements.
All specifications are subject to technical review and production confirmation.

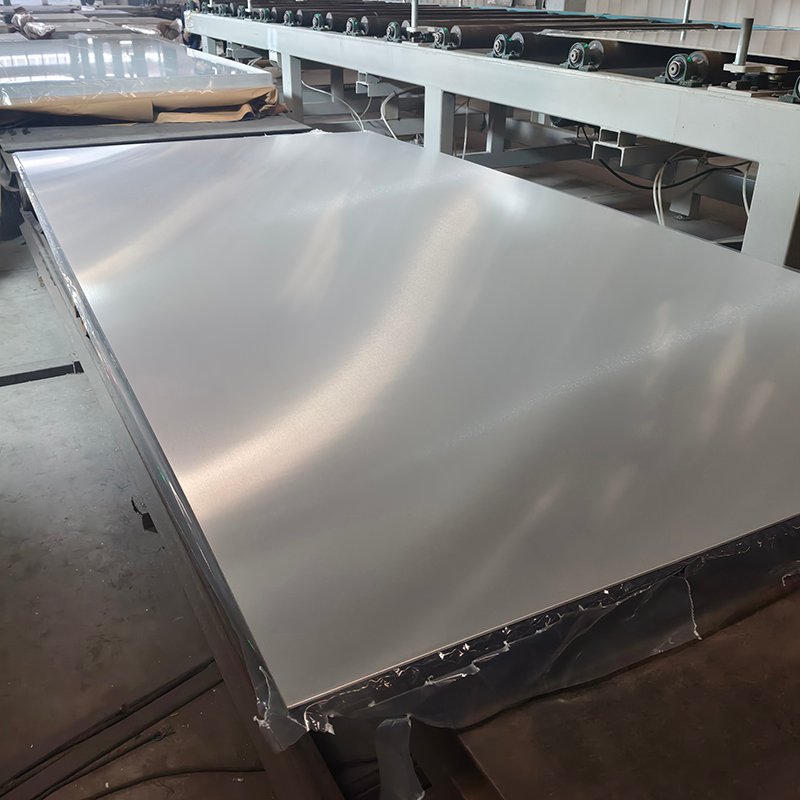

1060 Aluminum Sheet Production & Processing
1060 aluminum sheets are produced through rolling and finishing processes to achieve the required thickness, dimensions, and surface condition.
Depending on the order, production and processing may involve rolling, leveling, cutting, dimensional inspection, and protective packaging.
The production route and processing requirements are confirmed according to the customer’s specifications.

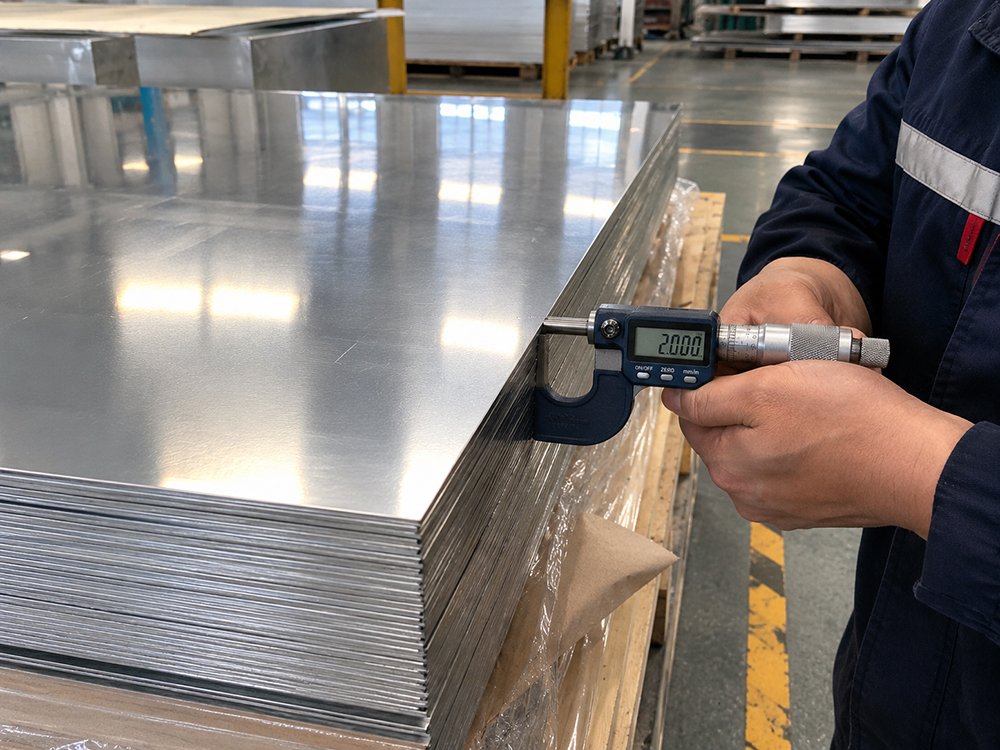

Quality Inspection
Quality inspection of 1060 aluminum sheets may include:
- Chemical composition verification
- Thickness, width, and length measurements
- Surface quality inspection
- Flatness and dimensional tolerance checks
- Tensile strength, yield strength, and elongation testing
- Packaging and product identification checks
Inspection methods and acceptance criteria are determined according to applicable standards and agreed customer requirements.

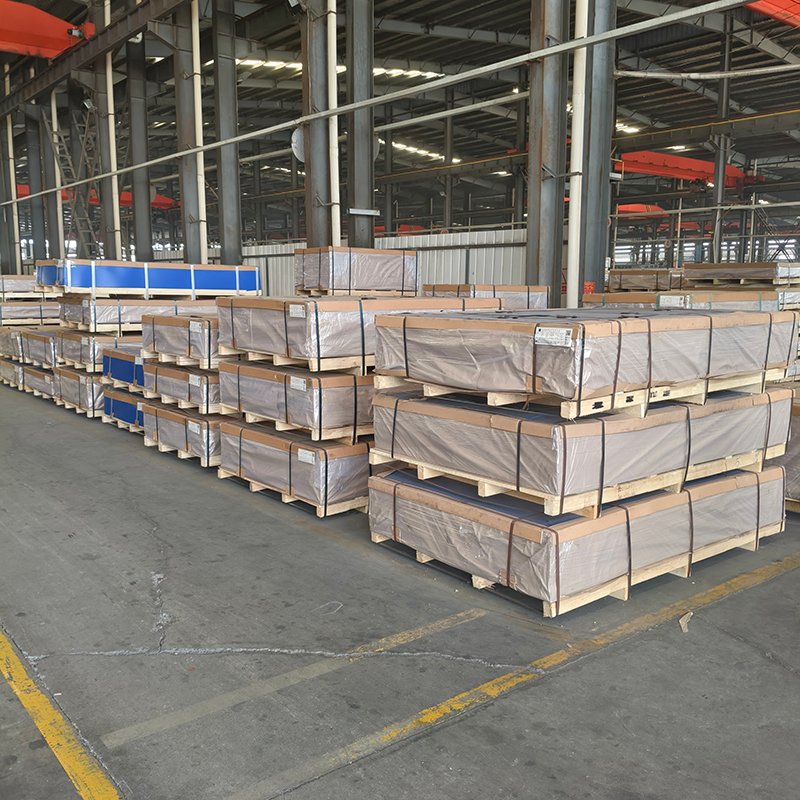

Aluminum Sheet Packaging & Shipping
1060 aluminum sheets can be packed using protective paper or film, wooden pallets or cases, and suitable securing materials.
Packaging is selected according to sheet dimensions, surface requirements, and transportation conditions to reduce the risk of handling damage.
Why Choose Hongyuan Aluminum?
- Manufacturer-based supply: Direct communication on technical specifications and production requirements.
- Customized dimensions: Support for different thicknesses, sizes, and tempers.
- Quality control: Inspection requirements agreed according to customer specifications.
- Export packaging: Suitable packaging arrangements for international transportation.
- B2B quotation support: Technical and commercial communication for industrial buyers.
Frequently Asked Questions
What is 1060 aluminum sheet?
1060 aluminum sheet is a commercially pure aluminum product containing at least 99.6% aluminum. It is widely used in forming, thermal, electrical, and general industrial applications.
What standards apply to 1060 aluminum sheet?
ASTM B209/B209M and GB/T 3880 are commonly referenced standards for aluminum sheet and plate products. The applicable requirements depend on the specified alloy designation, temper, dimensions, and purchase agreement.
What is the difference between 1050 and 1060 aluminum sheet?
1060 has a minimum aluminum content of 99.6%, compared with 99.5% for 1050. Both provide good corrosion resistance and formability.
Is 1060 aluminum sheet suitable for bending?
Yes. 1060 aluminum has good formability, especially in O temper. The suitable temper depends on the thickness, bending radius, and required strength.
Can 1060 aluminum sheet be used for electrical applications?
Yes. Its high electrical conductivity makes it suitable for certain electrical components, subject to the relevant electrical and mechanical design requirements.
Can you provide customized sizes?
Yes. Please send the required thickness, width, length, temper, and order quantity for production confirmation.
Can you provide material test certificates?
Material certificates can be arranged according to the agreed standard and order requirements.
Request a Quote for 1060 Aluminum Sheet
Looking for a reliable 1060 aluminum sheet manufacturer in China?
Contact Hongyuan Aluminum for customized specifications, technical support, and competitive factory-direct pricing.
Contact us today with your required alloy temper, thickness, width, length, quantity, application, and delivery destination. Our team will review your requirements and provide a quotation tailored to your specifications.
